PCB design with metal dome

As you know, metal dome is the role of a switch. So metal domes are generally used in PCB printed circuit board,how do we design the PAD of pcb?

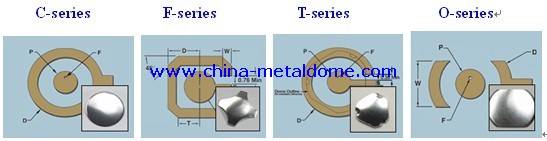

For different shape of metal dome, PCB pad design is not the same; For the different layers of the PCB, it is also not the same. Look at the following picture which is several types of metal dome pad design:
pcb pad metal dome design
